  • 120 Centipoise (cP) Nominal Viscosity Conformal Coating

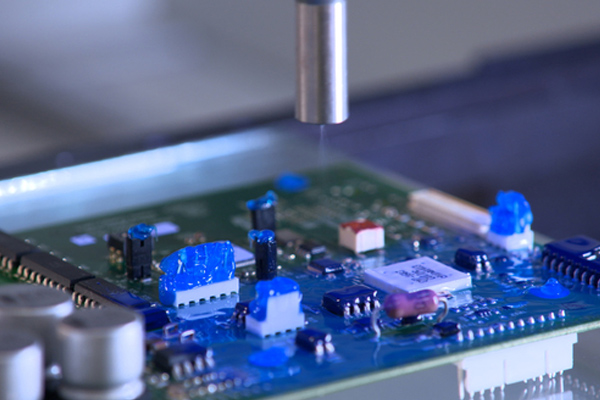

Light-cure conformal coatings cure tack-free in seconds upon exposure to UV/Visible or LED light and feature secondary heat or moisture-cure capability for shadow areas on PCBs. They protect printed circuit boards and components from extreme environmental conditions such as heat, chemicals, and humidity.

  • UV/Visible/LED light cure in seconds
  • Multi-Cure and Dual-Cure products (secondary heat or moisture cure)
  • High visibility fluorescence for inline Q.C.
  • One-part formulations, no solvents added
  • IPC and MIL SPEC approvals; some meet NASA ASTM E595 Low Outgassing
  • Flexible and rigid bonds to FPB and PCB substrates
  • Temperature/humidity resistance
  • Black coatings to hide sensitive circuitry
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Nominal Viscosity

Durometer Hardness

Modulus of Elasticity

Dielectric Strength

N/A Multi-Cure® 2,300 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 2,300 cP N/A D60 N/A 37.9 MPa5,500 psi N/A > 1,500 V/mil
N/A Multi-Cure® 850 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 850 cP N/A D70 N/A 310 MPa45,000 psi N/A > 1,500 V/mil
N/A Multi-Cure® 160 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 160 cP N/A D85 N/A 724 MPa105,100 psi N/A 1,800 V/mil
N/A Multi-Cure® 6,000 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 6,000 cP N/A N/A 717 MPa104,000 psi N/A 1,200 V/mil
N/A Dymax® 20 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 20 cP N/A D60 N/A 1,137 MPa165,000 psi N/A 1,000 V/mil
N/A Dymax® 125 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 125 cP N/A D75 N/A 150 MPa21,800 psi N/A > 1,500 V/mil
N/A Dymax® 1,100 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 1,100 cP N/A D70 N/A 275 MPa40,000 psi N/A 1,100 V/mil
N/A 820 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 820 cP N/A D72 N/A 910.3 MPa132,026 psi N/A 665 V/mil
N/A 750 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 750 cP N/A D60 N/A 276 MPa40,000 psi N/A
N/A 120 Centipoise (cP) Nominal Viscosity Conformal Coating N/A 120 cP N/A N/A N/A
