  • Dymax® BlueWave® MX-275 High-Intensity Light Emitting Diode (LED) Flood Curing Systems
High-Intensity LED Flood Curing System with Line Pattern Emitters

CE Marked - Available Globally

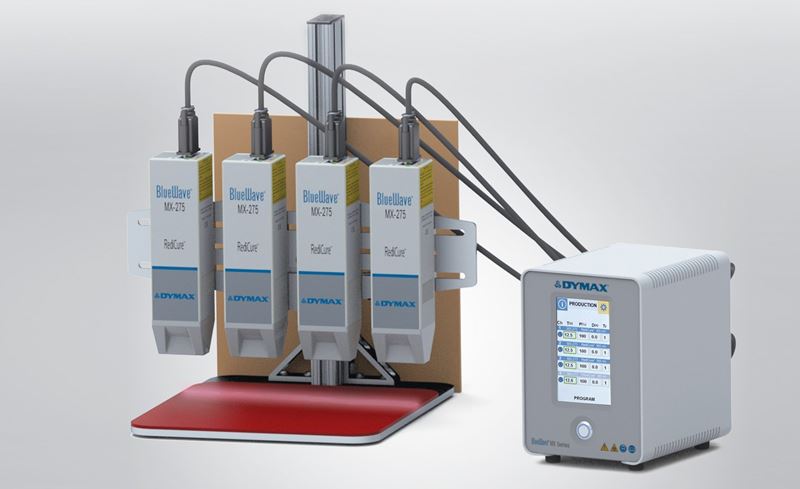

The BlueWave® MX-275 curing system is a high-intensity UV LED flood curing system. Light energy is delivered in a line pattern instead of the traditional rectangular flood curing patterns. A single BlueWave® MX-275 emitter provides a 5 mm x 50 mm curing area, but when paired with a multichannel controller, up to four emitters can be used to produce a curing area as large as 5 mm x 200 mm.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Output Frequency

Intensity Output at 10 Millimeter (mm) Working Distance

Intensity Output at 25 Millimeter (mm) Working Distance

Alternating Current (AC) Power Supply Input Voltage

N/A Dymax® BlueWave® MX-275 Light Emitting Diode (LED) Flood Curing System with 365 Nanometer (nm) Output Frequency RediCure® Emitter N/A 365 nm N/A 1,460 mW/cm² N/A 960 mW/cm² N/A 100 to 240 V
N/A Dymax® BlueWave® MX-275 Light Emitting Diode (LED) Flood Curing System with 385 Nanometer (nm) Output Frequency PrimeCure® Emitter N/A 385 nm N/A 1,870 mW/cm² N/A 1,220 mW/cm² N/A 100 to 240 V
N/A Dymax® BlueWave® MX-275 Light Emitting Diode (LED) Flood Curing System with 405 Nanometer (nm) Output Frequency VisiCure® Emitter N/A 405 nm N/A 1,750 mW/cm² N/A 1,100 mW/cm² N/A 100 to 240 V
