An Accessory for UV Light-Curing Control & Safety

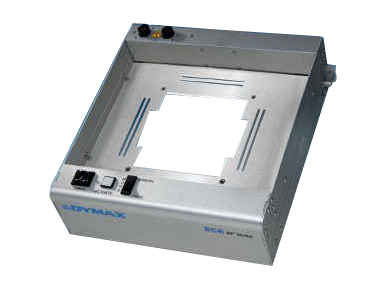

The ECE ZIP™ shutter is an accessory designed for use with Dymax® ECE-series UV flood lamps. When used as part of a flood lamp system, this shutter allows the flood lamp to stay on continuously, eliminating the warm-up period needed each time the lamp is turned on and preventing the negative effects that repeatedly turning on and off the lamp has on the bulb. Use of a shutter in a flood lamp system also increases worker safety by preventing operator exposure to UV light. Items may be loaded and unloaded from beneath the shutter when it is shut without exposing operators to UV light. When used with an ECE Light Shield, this shutter will automatically shut and block the UV light when the light shield door is opened.
Unit of Measure

Specifications

Brands

 N/A Dymax® ZIP™

Compatible Dymax® Flood Lamps

 N/A Dymax® ECE 2000 Flood Lamp Dymax® ECE 5000 Flood Lamp

Remote Control

 N/A Via Foot Switch
Range1 N/A 1 to 99 s

Increment Range

 N/A 1 s

Accuracy and Repeatability for Settings Below 30 Seconds (Sec) (±)

 N/A 1 s

Accuracy and Repeatability for Settings Above 30 Seconds (Sec) (±)

 N/A 2 s

Tolerance (±)

 N/A 2 %

Approval

 N/A CE Marked

Additional Information

N/A Operation of the shutter is easy and precise control of exposure times can be achieved with by using the unit's two modes of operation: Timed and Manual. In timed mode, the shutter opens by pressing a button on the front switch or by activating the remote switch (i.e. foot switch), and remains open for a user-specified period of time. In the manual mode, pressing the button on the front panel or remote switch (i.e. foot switch) opens the shutter and releasing the button closes the shutter.

Note

N/A Includes shutter & foot switch with connector cable.

  • 1 1 second increments
