An Accessory for UV Curing Control & Safety

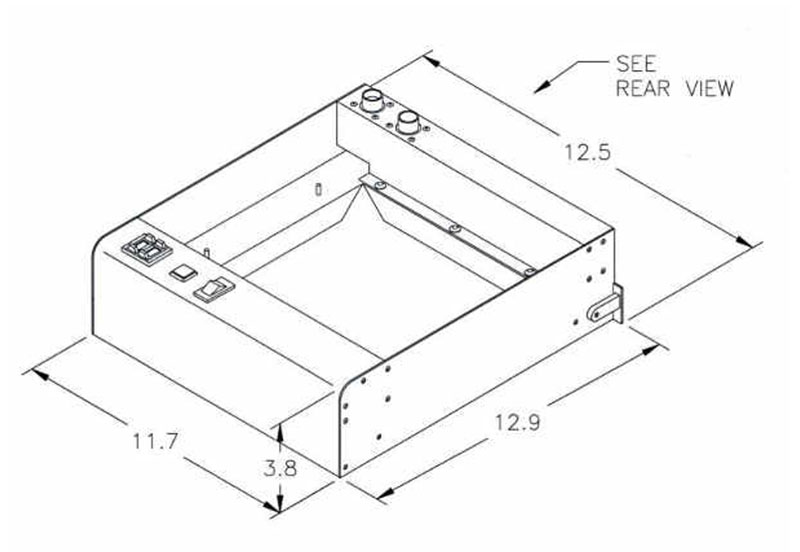

The Dymax® ZIP™ shutter is designed as an accessory to use with Dymax® UV flood lamps to control UV exposure time. Shutters also prevent operator exposure when opening shields.

Dymax® flood lamps require a few minutes to warm up after ignition. Turning the lamp off and on negatively affects the lifetime of the bulb. With a Dymax® shutter installed, the flood lamp may stay on continuously.
Unit of Measure

Specifications

Brands

 N/A Dymax® ZIP™

Compatible Dymax® Flood Lamps

 N/A Dymax® 2000 Series Dymax® 5000 Series

Remote Control

 N/A Via Foot Pedal
Range1 N/A 1 to 99 s

Increment Range

 N/A 1 s

Accuracy and Repeatability for Settings Below 30 Seconds (Sec) (±)

 N/A 1 s

Accuracy and Repeatability for Settings Above 30 Seconds (Sec) (±)

 N/A 2 s

Approval

 N/A CE Marked

Additional Information

N/A Objects may be loaded and unloaded from beneath the shutter when it is shut without exposing operators to ultraviolet light. In addition, precise control of exposure times can be achieved.

The shutter can be operated in two modes: Timed and Manual. In timed mode, the shutter opens by pressing a button on the front panel or by activating the remote switch (i.e. foot pedal switch), and remains open for a user-specified period of time.

In the manual mode, pressing the button on the front panel or remote switch (i.e. foot pedal) opens the shutter and releasing the button closes the shutter.

Note

N/A Includes shutter & foot pedal switch with connector cable.

  • 1 1 second increments
