  • Dymax® SG-150 Handheld Standard and High-Flow Spray Gun Systems
Handheld Spray Guns for Coating and Masking

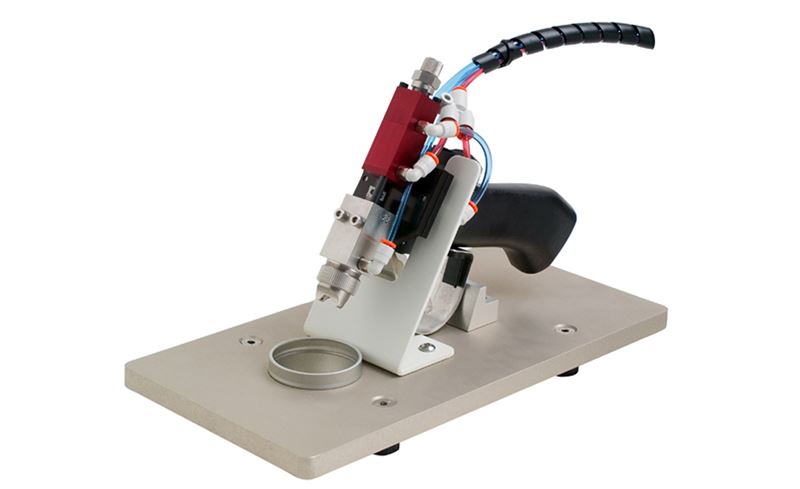

Dymax® SG-150 handheld spray guns, available in both standard and high-flow models, provide a solution to manually spray fluids for masking and coating applications. The SG-150-RS standard-flow spray gun is ideal for dispensing fluids with viscosity lower than 10,000 cP, while the SG-150-RH is better suited for spraying fluids with viscosity of 10,000 cP and higher.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Activation

Valve Air Pressure

Atomizing Air Pressure

Flow Rate

N/A Dymax® SG-150-RS Standard-Flow Spray Gun with Round Cap N/A Manually Controlled -Trigger Actuate N/A 60 to 100 psi4.14 to 6.89 bar N/A 0 to 15 psi0 to 1.03 bar N/A 0.3 mL/s
N/A Dymax® SG-150-RH High-Flow Spray Gun with Round Cap N/A Manually Controlled -Trigger Actuate N/A 60 to 100 psi4.14 to 6.89 bar N/A 0 to 30 psi0 to 2.06 bar N/A 2.0 mL/s
