CE Marked - Available Globally

Dymax® BlueWave® QX4 V2.0 LED spot curing system provides high-intensity spot-curing technology, a compact size, and incredible curing versatility to create an efficient and user-friendly experience.

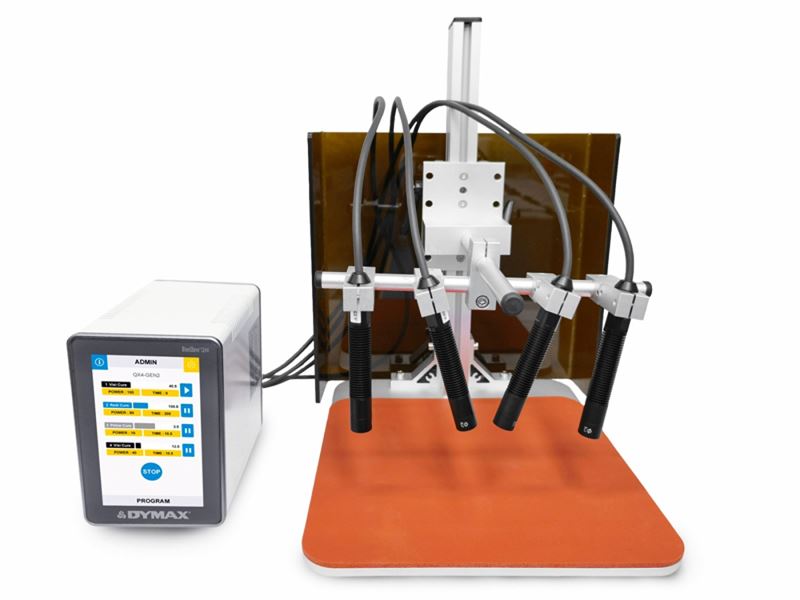

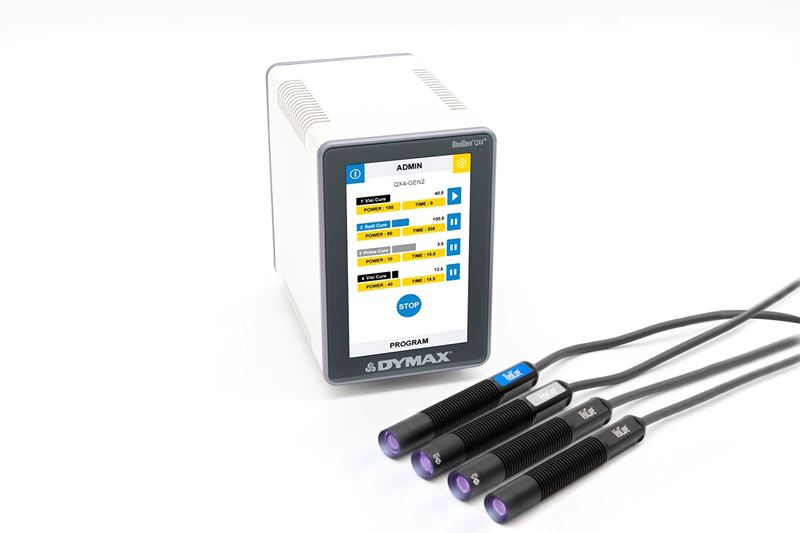

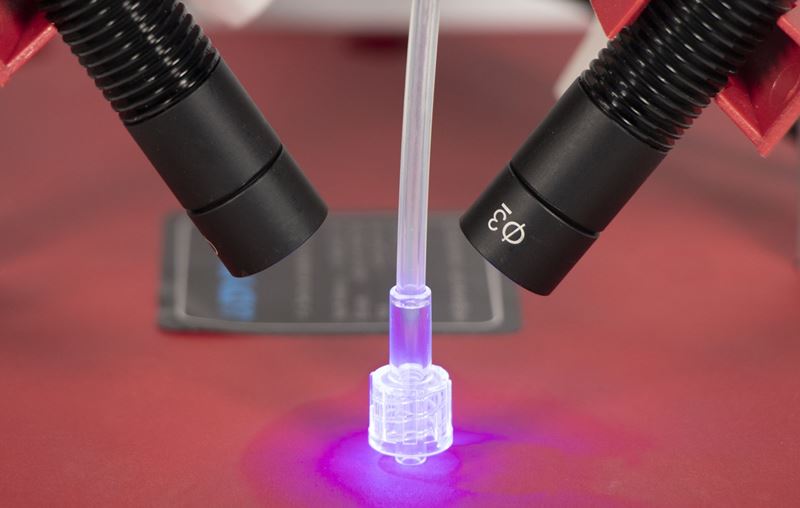

This spot curing system features all the benefits of LED-curing technology in a small, versatile unit. The system is comprised of a controller with a footswitch and up to four LED heads. Each head is available in 365, 385, and 405 nm and can be operated in unison or independently of each other. The LEDs are installed directly at the end of the heads, allowing for precise light delivery. Additionally, mounting the heads close to components enables 360° cures of hard-to-reach areas on complex components.
Unit of Measure

Specifications

Brands

 N/A BlueWave® Dymax® QX4® VisiCure®

System Specifications

Light Emitting Diode (LED) Head

 N/A VisiCure®
Intensity Output1 N/A 22.0 W/cm²

Output Frequency

 N/A 405 nm

Power Supply Input Voltage

 N/A 100 to 240 V

Power Supply Input Current

 N/A ~1 A

Power Supply Input Frequency

 N/A 50 Hz60 Hz

Light Emitting Diode (LED) Timer

 N/A 0.1 to 999 s

Light Emitting Diode (LED) Activation

 N/A Footswitch Front Panel Programmable Logic Controller (PLC)

Cooling

 N/A Natural Convection

Controller Weight

 N/A 2.2 lb1 kg

Head Weight

 N/A 4.6 oz130 g

Warranty

 N/A 1 Year from Purchase Date

Operating Environment (Non-Condensing)

 N/A 10 to 40 ºC50 to 104 ºF

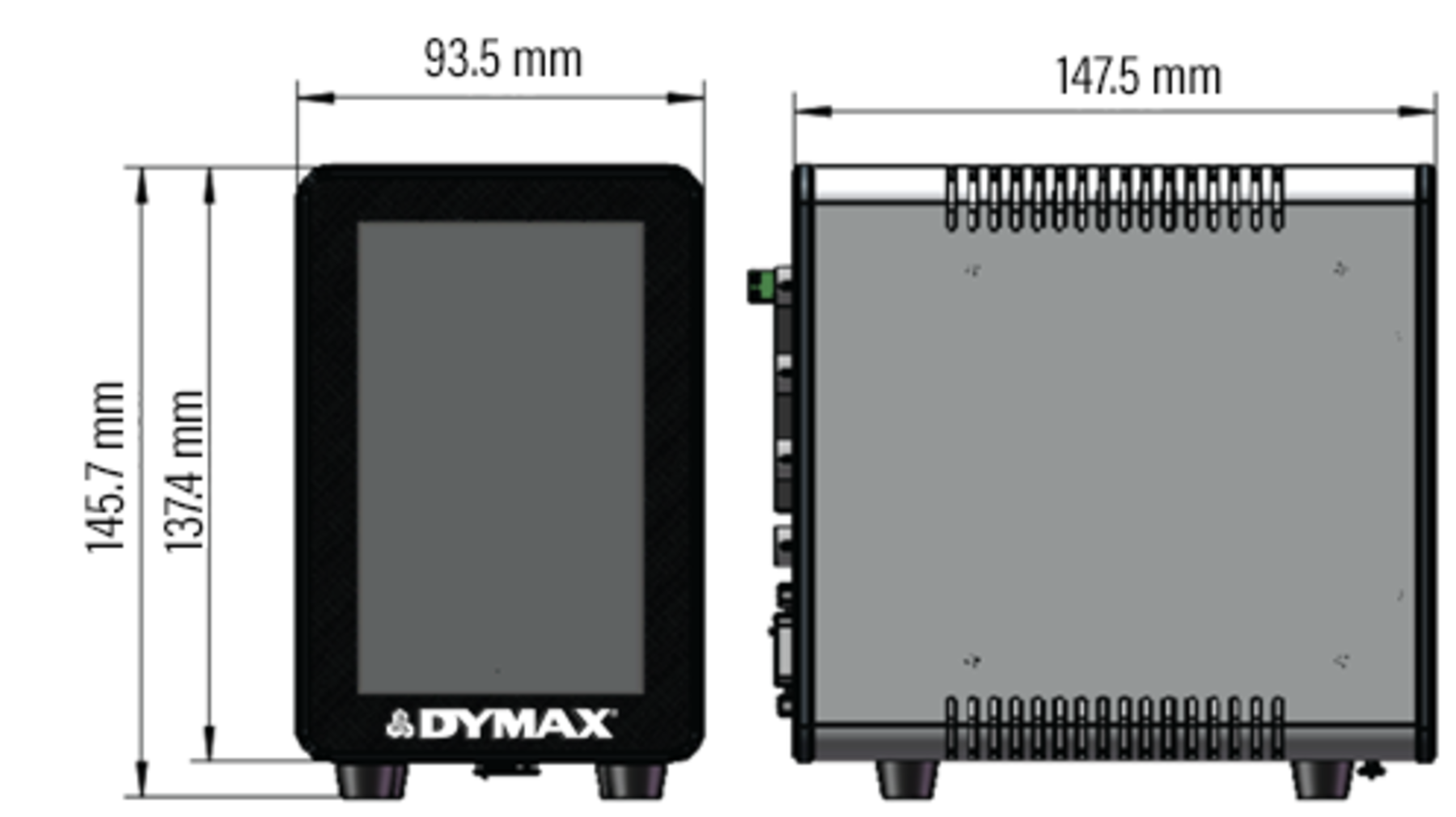

Dimensions

Controller Width

 N/A 3.5 in9.0 cm147.5 mm

Controller Depth

 N/A 5.5 in14.1 cm93.5 mm

Controller Height

 N/A 5.6 in13.7 cm137.4 mm

Features and Benefits

N/A

  • One controller controls up to four LED heads for maximum application flexibility

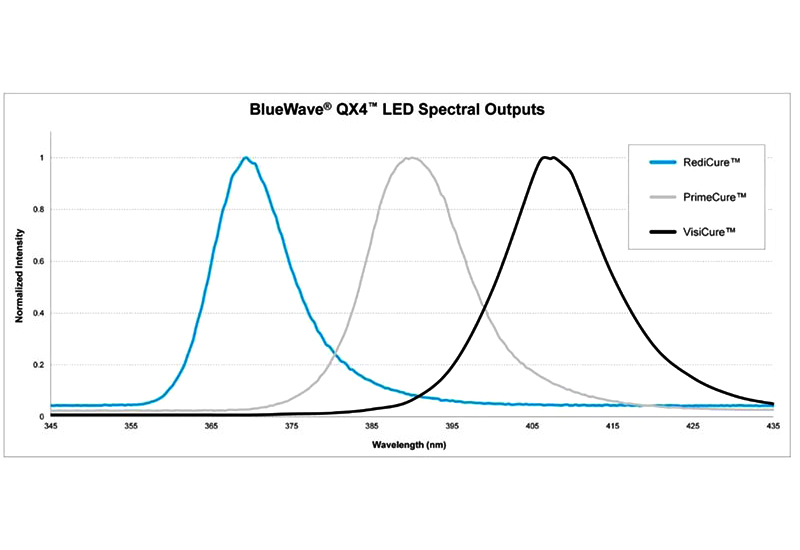

  • LED heads for 365, 385, or 405 nm wavelengths for better compatibility with different light-curable materials
  • Improved, flexible LED heads can be programmed independently for accurate curing
  • Individual exposure times and intensity settings available in 1% increments for each LED head allows for maximum curing flexibility
  • Interchangeable/replaceable focusing lenses in 3-, 5-, and 8-mm diameters that allow tailoring of the unit to your curing requirements
  • Instant on-off – no warm-up period and more energy efficient
  • Efficient LED temperature management for continuous operation without overheating and comfortable hand-held operating temperature
  • PLC touch screen interface that is easily incorporated into automated systems

Additional Information

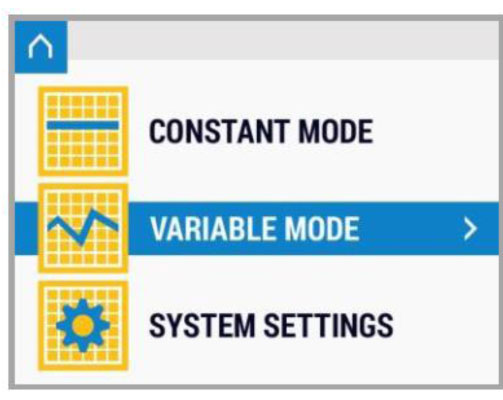

N/A Each spot curing system can be outfitted with either the 3-, 5-, or 8-mm diameter focusing lenses. LED heads and focusing lenses can be used in any combination and can be controlled through the system’s variable mode, a feature that allows each head to be individually programmed for intensity and cycle times. Individual exposure times and intensity settings can be set to 1% increments, giving users maximum curing flexibility.

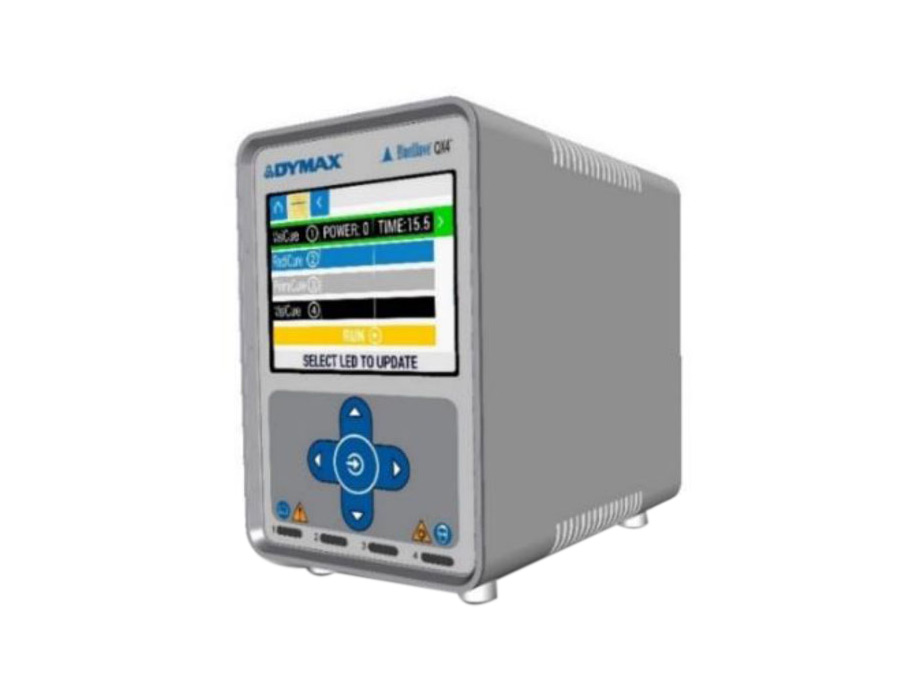

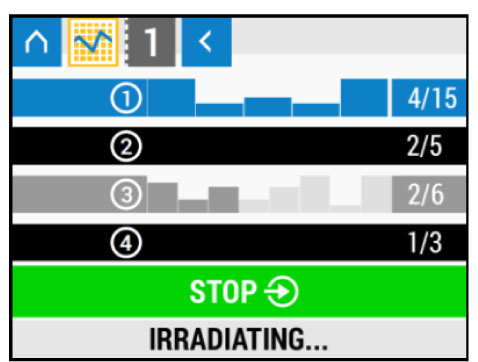

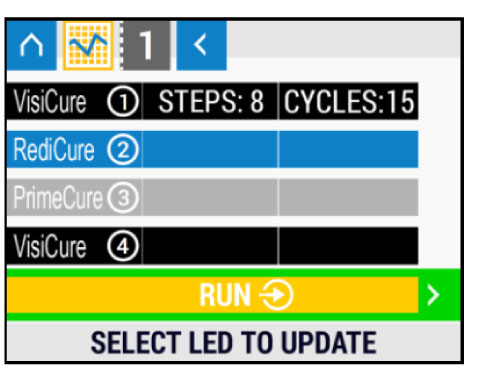

In addition to the curing flexibility, the BlueWave® QX4 V2.0 also features an easy-to-use control touch screen interface with the capacity to store up to 20 programs. The unit can be activated by a foot pedal or by PLC interface, allowing it to be easily incorporated into automated systems.

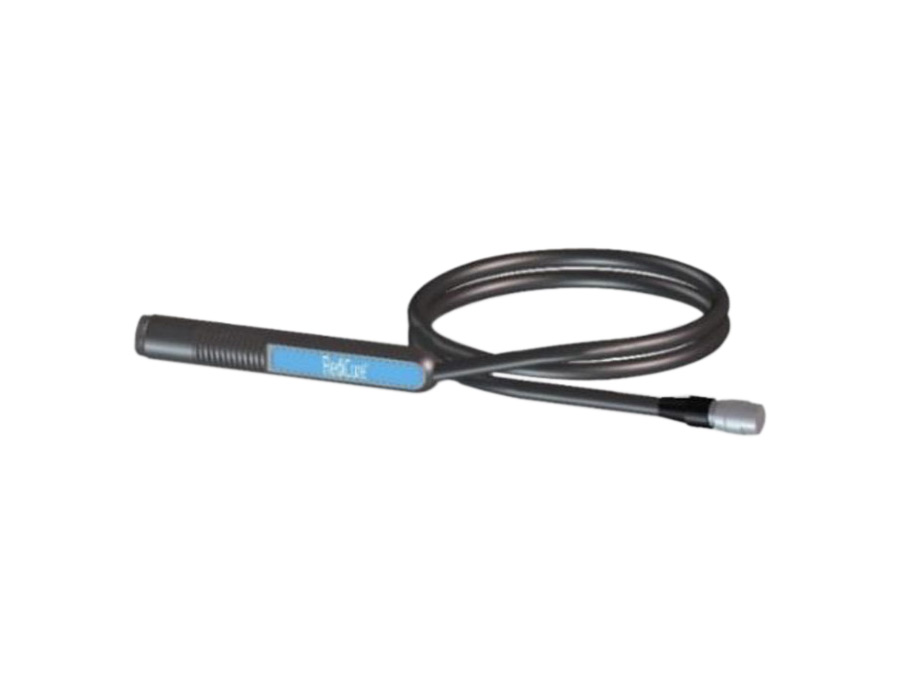

The complete BlueWave QX4 V2.0 LED curing system is comprised of a controller/power supply with a footswitch, up to four LED heads/wands. A lens will need to be ordered for each head/wand in order to function properly. The length of the head/wand with the direct wired cable is 1.5 M (end to end). Components are sold separately.

  • 1 Measured with 3-mm lens using a Dymax® ACCU-CAL™ 50-LED Radiometer, in spot mode at a distance of 5 mm.
