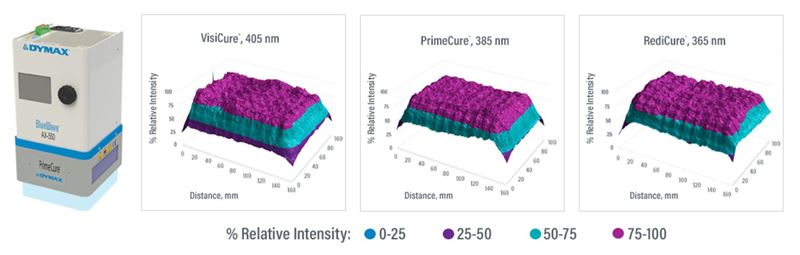

The BlueWave® AX-550 V2.0 is a LED-light-curing system that combines a controller, emitter, and power supply into a compact and quiet design. It combines high intensity with high uniformity and a large curing area to maximize light delivery. Eliminating the need for a large, traditional-style controller, this unit has a greatly reduced footprint and is easily integrated into Dymax® conveyors and other machines or automated systems. The high-intensity emitters are detachable, and the system is field-upgradable so users can switch to another wavelength or upgrade to a more powerful emitter if desired. It is CE compliant for global installation and features programmable curing time and intensity settings. The flood cure system is best used for larger curing areas, yet the unit is compact and quiet.
Unit of Measure

Specifications

Brands

 N/A BlueWave® Dymax®

Output Frequency

 N/A 385 nm
Intensity Output1 N/A 800 mW/cm²

Working Distance

 N/A 25 mm

Weight

 N/A 14.1 lb6.4 kg

Cooling

 N/A Air Cooled

Unit Warranty

 N/A 1 year from purchase date

Certifications

 N/A Global (CE Marked)

Curing Area

 N/A 5 x 5 in

Operating Environment

Operating Temperature

 N/A 10 to 40 ºC50 to 104 ºF

Operating Non-Condensing Relative Humidity

 N/A 0 to 30 %

Maximum Altitude

 N/A 2000 m

Dimensions

Height

 N/A 6.61 in16.8 cm

Width

 N/A 11.45 in29.1 cm

Length

 N/A 6.88 in17.5 cm

Shipping and Storage Conditions

Storage Temperature

 N/A -20 to +50 ºC

Storage Non-Condensing Relative Humidity

 N/A 10 to 80 %

Shipping

 N/A Ship via Standard Ground, Ocean or Air Freight

Product Spotlight

N/A BlueWave® AX-550 V2.0 LED Flood Lamp

Get high-intensity LED light curing in a compact size! The BlueWave® AX-550 flood-curing system combines an emitter, controller, and power supply into one compact unit, eliminating the bulk and cost of connection cables and other miscellaneous parts. Quiet and efficient, it is available with a 365, 385, or 405 nm emitter that provides a sizable 5" x 5" curing area. This curing lamp can also be easily incorporated into automated assembly lines.

Accessories

N/A 60752 - Emitters Only

Features

N/A

  • Large 5" x 5" curing area
  • High-intensity and uniformity for fast curing
  • All-in-one design (controller, emitter & power supply)
  • Quiet, low noise system
  • Optimization of application-specific frequency emissions by changing only the emitter
  • Easy to navigate user interface with intuitive menu-driven programming and operation
  • Provides system status and troubleshooting
  • Emitters are interchangeable and easily upgraded in the field for flexibility to meet changing applications
  • Standard SD card access port for field upgrading firmware to the latest specifications
  • PLC activation and control
  • Control and monitor power levels, exposure times/routines, system health and safety lockout via PLC interface

Additional Information

N/A All-in-One, High-Intensity Flood Curing System for Quiet, Efficient LED Curing

CE Marked - Available Globally

The AX-550 V2.0 curing system also features an easy-to-navigate user interface with push-button controls. Units can be password protected to limit access to only authorized users and protect process parameters. The units are warrantied against defects in material and workmanship for one year from the date of purchase.

LED Light-Curing Technology
Dymax® LED flood curing systems generate curing energy using high-intensity LEDs in lieu of conventional arc lamp technology. The relatively narrow frequency band of energy emitted by LEDs results in cooler curing environments and substrate temperatures compared to traditional UV-style lamp systems, making them ideal for curing thermally sensitive materials. Dymax® LED curing systems offer many energy and cost-saving benefits, such as no warm-up period, lower energy consumption, no bulbs to change, and more consistent frequency and intensity output for better process control.

Note

N/A The appropriate power cord will be added for European customers.

  • 1 Measured using a Dymax® ACCU-CAL™ 50-LED Radiometer in flood lamp mode.
