Utilizes PROFINET or EtherNet/IP Protocols to Independently Drive Emitters

CE Marked - Available Globally

Dymax® BlueWave® MX-MIM machine interface module is designed for machine builders and automated equipment using the PROFINET and EtherNet/IP network protocols. These two protocols allow machine builders to greatly reduce I/O channels and free up analog control cards compared to traditional analog- and digital-relay-logic PLC control systems.

Machine interface module only.

Emitters, interconnect cables to connect controller to emitters, and power supply sold separately.
Unit of Measure

Specifications

Brands

 N/A BlueWave® Dymax®

Emitter Channels

 N/A Supports up to four MX-series emitters
Network Interface1 N/A One 10/100 base-T Port. Supports EtherNet/IP, and PROFINET.

Mounting

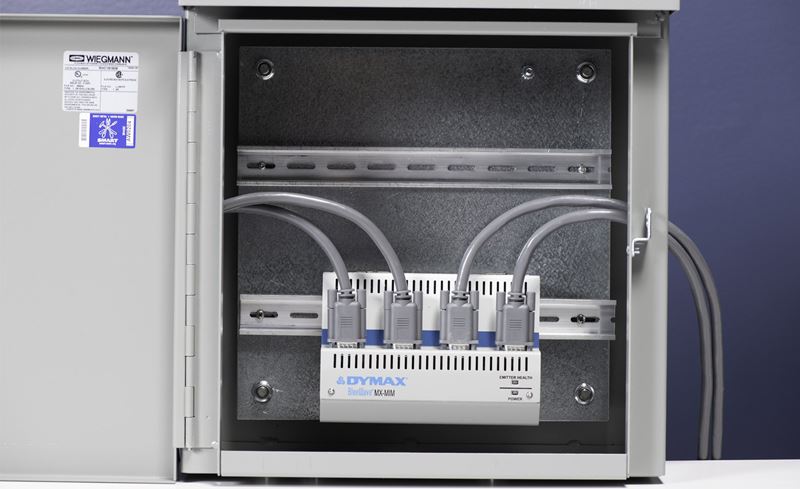

 N/A DIN Rail; 35-mm top-hat style

Weight

 N/A 2.035 lb0.923 kg

Cooling

 N/A Internal fan, no filter

Certifications

 N/A Global (CE Marked)

Power Supply Input

Direct Current (DC) Power Supply Input Voltage

 N/A 24 V

Direct Current (DC) Power Supply Input Voltage Tolerance (±)

 N/A 1 %

Minimum Current

 N/A 10 A

Recommended Power Supply Input

 N/A 300 W

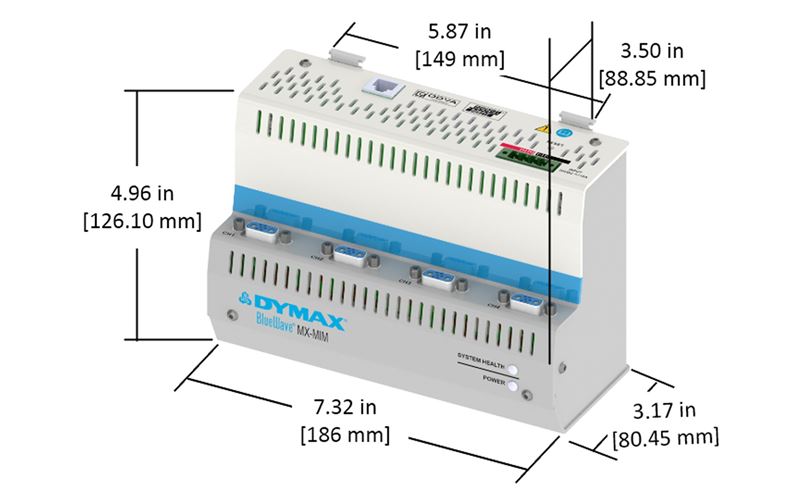

Physical Dimensions

Height

 N/A 4.96 in12.59 cm

Width

 N/A 7.32 in18.59 cm

Depth

 N/A 3.50 in8.89 cm

Operating Environment

Operating Environment

 N/A Indoor use only. Not qualified for outdoor use.

Ambient Temperature

 N/A +10 to +40 ºC

Operating Non-Condensing Relative Humidity

 N/A 0 to 80 %

Note for Operating Environment

 N/A This device is designed to operate in a typical production environment where dust particulates and harmful vapors are kept to a minimum. Cabinet air filtration is suggested to prevent dust accumulation.

At Sea Level

Storage Conditions

Storage Temperature

 N/A -20 to +50 ºC

Storage Non-Condensing Relative Humidity

 N/A 0 to 75 %

Note for Storage Conditions

 N/A At Sea Level

Features

N/A

  • Advanced monitoring and diagnostics for systems, controllers, and emitters

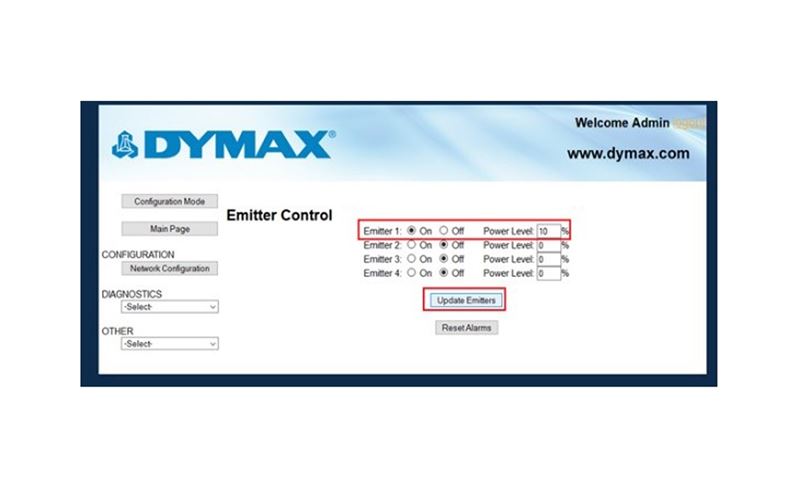

  • Integrated web browser for set-up and monitoring

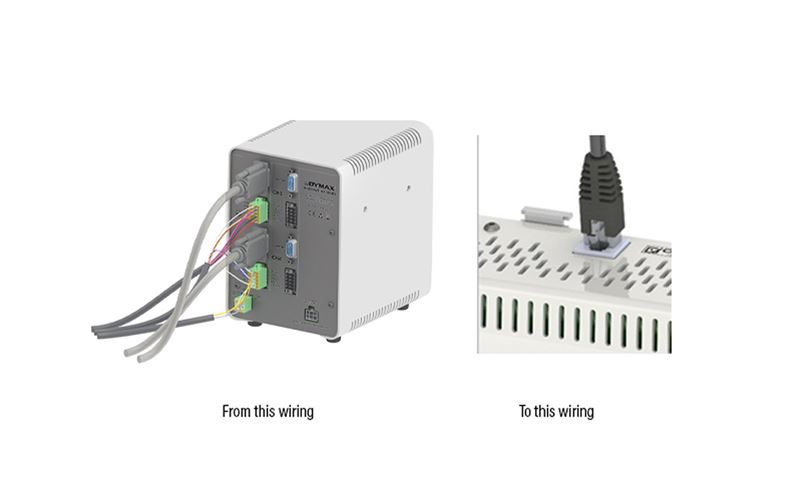

  • Simplified wiring and I/O
  • Independent safety interlocks that are not reliant on firmware
  • Mountable on a standard 35-mm DIN rail
  • Interconnect cables for multi-station or remote placement (2-, 5-, 10-, and 20-meter lengths)

Additional Information

N/A Incorporating the BlueWave® MX-MIM into automated light-curing systems allows machine builders to independently power up to four Dymax® MX-Series emitters at the same time in flood or light-bar patterns. Emitters can be synchronized together to act as one for higher throughput or to create a larger cure area. Compatible with:

  • BlueWave® MX-150 spot lamp
  • BlueWave® MX-250 flood lamp
  • BlueWave® MX-275 light bar
Compatible with BlueWave® MX-150, MX-250, and MX-275 emitters with firmware version 1.11 or higher. Dymax® can easily upgrade emitter firmware to the latest versions by returning your emitter to one of our service facilities.

  • 1 Device Level Ring (DLR) is not supported
