Request Information
Available Globally, Except Europe
Unit of Measure

Specifications

Brands

 N/A Dymax®

Lamp Model

 N/A Fusion F300 Lamps

Lamp Orientation

 N/A Full Width (FW)

Type

 N/A Asian Version (Type G Plug)

Conveyor Voltage

 N/A 220 V230 V

Current

 N/A 2.4 A

Belt Width

 N/A 12 in30 cm

Belt Speeds

 N/A 1 to 27 ft/min

Curing Width

 N/A 12 in30 cm

Lamp Adjustment Range

 N/A 1.7 to 5.5 in4.3 to 14 cm
Maximum Parts Height1 N/A 10 in25.4 cm

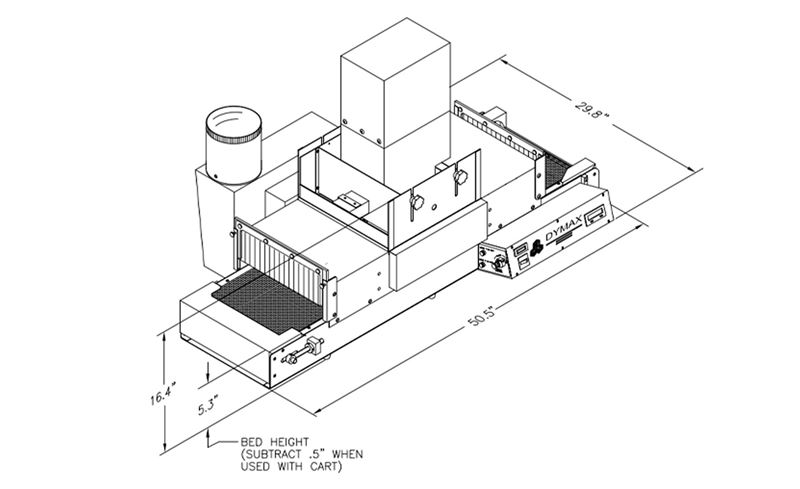

Overall Length

 N/A 50.5 in128 cm

Overall Width

 N/A 29.8 in76 cm

Overall Height

 N/A 16.4 in42 cm

Shipping Weight (with Crates and Lamps)

 N/A 350 to 400 lb159 to 181 kg

Crated Length

 N/A 69 in175 cm

Crated Width

 N/A 44 in112 cm

Crated Height

 N/A 29 in74 cm

Number of Lamps

 N/A 2

Width of Illuminated Area

 N/A 12 in
Maximum Ultraviolet A (UVA) Intensity2 N/A 2500 mW/cm²320 to 390 nm

Maximum Ultraviolet A (UVA) Energy at 5 Feet Per Minute (fpm)

 N/A 2 J/cm²320 to 390 nm

Note for Maximum Parts Height

 N/A Adding Rises Increases

Line Speed

 N/A 1 to 27 fpm25 to 115 fpm

Frequency

 N/A 50 Hz60 Hz

Vertical Clearance

 N/A 10 in (with 6 in riser, PN 39280) 4 in (Standard) 6 in (with 2 in riser, PN 39218)

Selection of Lamps

N/A These lamps provide moderate intensity (~200 mW/cm2) over a 6" x 6" (approximate) curing area. Their 400-Watt auto-switching power supplies accept 90 to 264 Volts AC and 47 to 63 Hz. With normal use, 5000-EC bulbs will retain approximately 90% of their original intensity after 1,000 hours. 5000-EC lamps are recommended for small-to-medium throughput bonding applications. For faster or more tack-free cures, Fusion F300 lamps are recommended.

UVCS series conveyors can be outfitted with either 5000-EC lamps or Fusion F300 lamps.

Replacement Parts

N/A Item # - 39205
Item Name - Acrylic Tunnel Shield
Quantity - 1

Item # - 39207
Item Name - Tunnel Light Curtain
Quantity - 1

Item # - 39134
Item Name - Replacement Belt
Quantity - 1

Item # - 39209
Item Name - Extension Shield
Quantity - 1

Item # - 39241
Item Name - 5000-EC (for conveyors)
Quantity - 1

Features

N/A

  • Consistent UV curing process
  • Complete UV shielding
  • Adjustable lamp to belt distance
  • 4 in, 6 in, or 10 in vertical clearance
  • Integral cooling and vacuum hold-down
  • 1 to 27 fpm or 25 to 115 fpm
  • Bulb life: 5,000 hours
  • Bench-top conveyor (cart optional)

Additional Information

N/A These conveyors have lamps that span the full width of the conveyor.

Manufacturing Notes

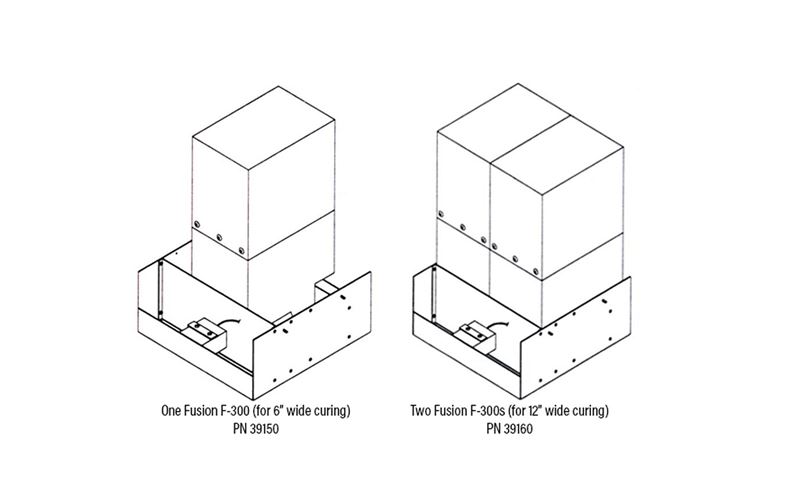

N/A UVCS conveyors are available without lamps for those customers that have previously purchased 5000-EC or Fusion F300 lamps. Additional lamps may be incorporated into UVCS conveyors after initial purchase (from one or two Fusion lamps, or up to four 5000-ECs). Contact Dymax® Application Engineering for configuration assistance.

Note

N/A These conveyors have lamps that span the full width of the conveyor.

  • 1 Adding risers increases to 10" (25.4 cm)
  • 2 Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL™ 50 radiometer
