Available Globally, Except Europe

Dymax® 12 in wide UV Curing Conveyor Systems (UVCS) offer consistent, fast, and safe UV curing. Designed for curing UV curable adhesives, coatings, and inks, these systems can be outfitted with a standard metal halide (longwave) or mercury (shortwave) bulbs.
This UV cure oven does not emit stray UV light and can be outfitted with one, two, or four moderate-intensity 5000-EC UV flood lamps.
Unit of Measure

Specifications

Brands

 N/A Dymax®
Maximum Ultraviolet A (UVA) Intensity1 N/A 200 mW/cm²320 to 390 nm

Maximum Ultraviolet A (UVA) Energy at 5 Feet Per Minute (fpm)

 N/A 1.25 J/cm²320 to 390 nm

Line Speed

 N/A 1 to 32 fpm
Illuminated Area Width2 N/A 6 in12 in

Conveyor Voltage

 N/A 120 V

Lamps Voltage

 N/A 90 to 260 V

Vertical Clearance

 N/A 10 in (with 6 in riser, Part 39280) 4 in (Standard) 6 in (with 2 in riser, Part 39218)
Typical Bulb Life3 N/A 2,000 + h

Lamp Model

 N/A 5000-EC Lamps

Lamp Orientation

 N/A Center Mounted (CM)

Type

 N/A North American Version (Standard Plug 120 V)

Current

 N/A 4.8 A

Belt Width

 N/A 12 in30 cm

Belt Speeds

 N/A 1 to 27 ft/min

Curing Width

 N/A 6 in15 cm

Lamp Adjustment Range

 N/A 1.7 to 5.5 in4.3 to 14 cm
Maximum Parts Height4 N/A 4.25 in10.8 cm

Shipping Weight (with Crates and Lamps)

 N/A 350 to 400 lb159 to 181 kg

Crated Length

 N/A 69 in175 cm

Crated Width

 N/A 44 in112 cm

Crated Height

 N/A 29 in74 cm

Model

 N/A UVCS-D5-1-120

Number of Lamps

 N/A 1

Width of Illuminated Area

 N/A 6 in

N/A Item # - 39215

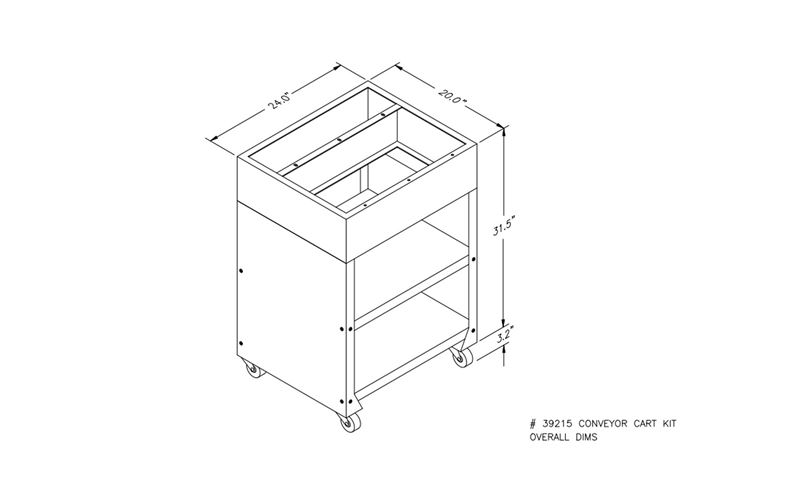

Item Name - Transportation Cart
Description - Easily move your conveyor with one of these durable, rolling carts.

Item # - 38560
Item Name - Metal-Halide Bulb (Standard, UVA, Longwave)
Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps.

Item # - 36970
Item Name - Mercury Bulb (UVB, Shortwave)
Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps. These bulbs are primarily designed for curing UV inks and cationic epoxies.

Item # - 36658
Item Name - Visible Bulb
Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Dymax® EC-series flood lamps. The bulbs are primarily designed for curing UV/visible curing adhesives through UV-blocked, but transparent substrates.

Item # - 36399
Item Name - "D" Bulb (Standard)
Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Fusion lamps.

Item # - 36441
Item Name - "H" Bulb
Description - For use with UVCS, SideCure, & Edge-Carry conveyors outfitted with Fusion lamps. These bulbs are primarily designed for curing UV inks and cationic epoxies.

Item # - 38146
Item Name - "V" Bulb

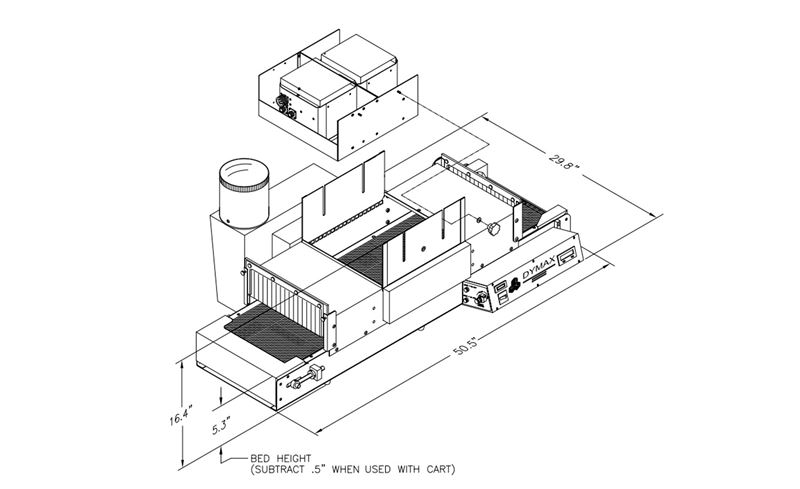

Overall Dimensions

Overall Length

 N/A 50.5 in128 cm

Overall Width

 N/A 29.8 in76 cm

Overall Height

 N/A 16.4 in72 cm

Features

N/A

  • Available globally (except Europe)
  • Consistent UV curing process
  • Adjustable lamp-to-belt distance
  • 4 in, 6 in, or 10 in vertical clearance
  • Integral cooling and vacuum hold-down
  • 1 to 32 feet per minute line speed

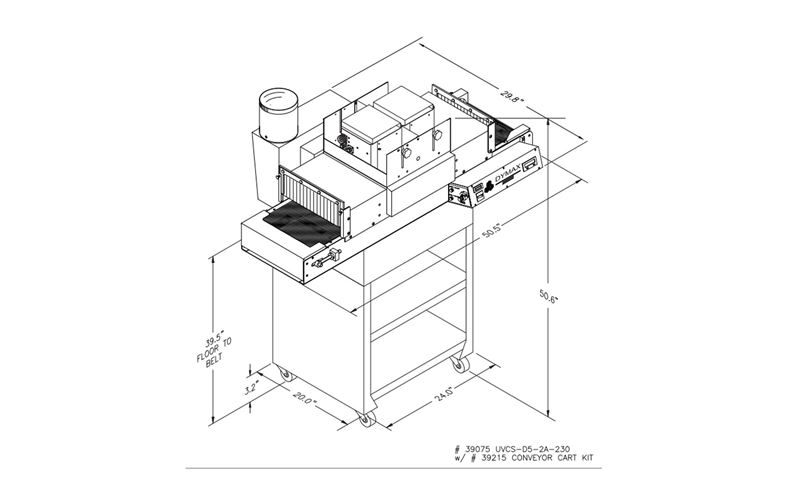

  • Bench-top conveyor (cart optional)

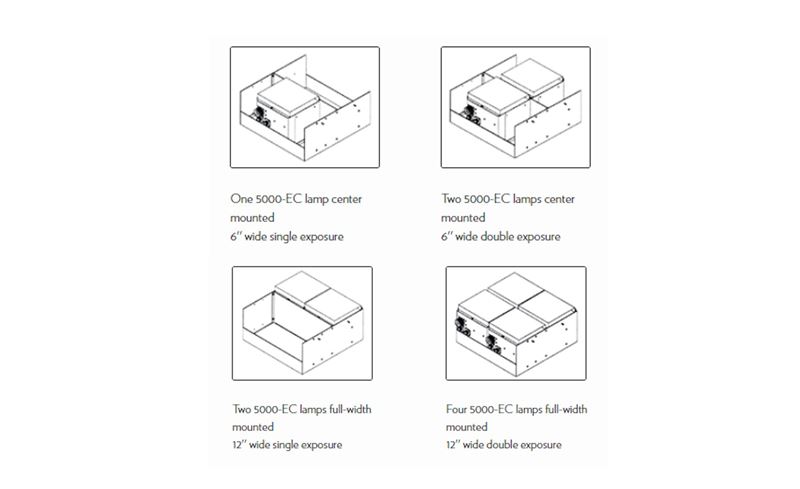

Selection of Lamps

N/A These lamps provide moderate intensity (~200 mW/cm2) over a 6" x 6" (approximate) curing area. Their 400-Watt auto-switching power supplies accept 90 to 264 Volts AC and 47 to 63 Hz. With normal use, 5000-EC bulbs will retain approximately 90% of their original intensity after 1,000 hours. 5000-EC lamps are recommended for small-to-medium throughput bonding applications. For faster or more tack-free cures, Fusion F300 lamps are recommended.

UVCS series conveyors can be outfitted with either 5000-EC lamps or Fusion F300 lamps.

Replacement Parts

N/A Item # - 39205
Item Name - Acrylic Tunnel Shield
Quantity - 1

Item # - 39207
Item Name - Tunnel Light Curtain
Quantity - 1

Item # - 39134
Item Name - Replacement Belt
Quantity - 1

Item # - 39209
Item Name - Extension Shield
Quantity - 1

Item # - 39241
Item Name - 5000-EC (for conveyors)
Quantity - 1

Accessories

N/A Item # - 40550
1
ACCU-CAL™ 150 Radiometer

Item # - 39218
Pair
Risers Kit 2 in

Item # - 39277
1
Guides for 6 in Curing

Item # - 39280
Pair
Risers Kit 6 in

Item # - 39215
1
Transportation Cart

Additional Information

N/A Dymax® UVCS 2.0 Conveyor with 5000-EC Lamps
Available Globally, Except Europe
The UVCS 2.0 series of light-curing conveyor systems can be outfitted with 1, 2, or 4 medium- to high-intensity lamps that can be outfitted with standard metal halide (longwave) or mercury (shortwave) bulbs. These systems offer fast, consistent UV curing of adhesives, coatings, and inks and feature line speeds of 1 to 32 fpm. With a 4 in, 6 in, or 10 in vertical clearance, they are ideal for conveying and curing larger components quickly. The conveyors have vacuum hold down and integral cooling features and are shielded so they don’t emit stray light.

Manufacturing Notes

N/A UVCS conveyors are available without lamps for those customers that have previously purchased 5000-EC or Fusion F300 lamps. Additional lamps may be incorporated into UVCS conveyors after initial purchase (from one or two Fusion lamps, or up to four 5000-ECs). Contact Dymax® Application Engineering for configuration assistance.

Note

N/A These conveyors have center-mounted lamps and are supplied with removable guides to channel parts into middle 6" of conveyor.

  • 1 Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL™ 50 radiometer
  • 2 Depending on the number and orientation of the 5000-EC UV lamp.
  • 3 With less than 20% degradation
  • 4 Adding risers increases to 10" (25.4 cm)
