Needle bonding adhesives cure in seconds when exposed to UV/Visible/LED light for high-speed, high-volume syringe assembly lines that incorporate inline testing and packaging. Medica- grade products feature red or blue fluorescing for quality inspection under automated sensing or vision systems. Bondable substrates include PC, PMMA, and PA plastics as well as glass and metal.

  • UV/Visible/LED light curable
  • Single component materials require no mixing
  • Meet a variety of ISO 10993 standards
  • LED-curable materials available
  • Compatible with gamma, EtO, and E-Beam sterilization
  • Fluorescing for automated inspection
Unit of Measure

Specifications

Brands

 N/A Dymax® MD®

Cured Elongation at Break

 N/A 80 %

Available Grades

Recommended Substrates

 N/A Acrylonitrile Butadiene Styrene (ABS) Cellulose Acetate Propionate (CAP) Polycarbonates (PC) Polyethylene Terephthalate Glycol (PETG) Polyvinyl chloride (PVC) Stainless Steel Styrene Acrylonitrile Resin (SAN)

Nominal Viscosity

 N/A 250 cP

Cured Durometer Hardness

 N/A D70

Features

Features

 N/A
  • LED optimized for 405 nm
  • Cures with LED or UV/Visible light
  • Ultra-Red® - fluoresces bright red
  • No solvents added
  • Single component
  • Compliant with ISO 10993

Additional Information

Additional Information

 N/A LED-Curable Ultra-Red® Fluorescing Medical Adhesive

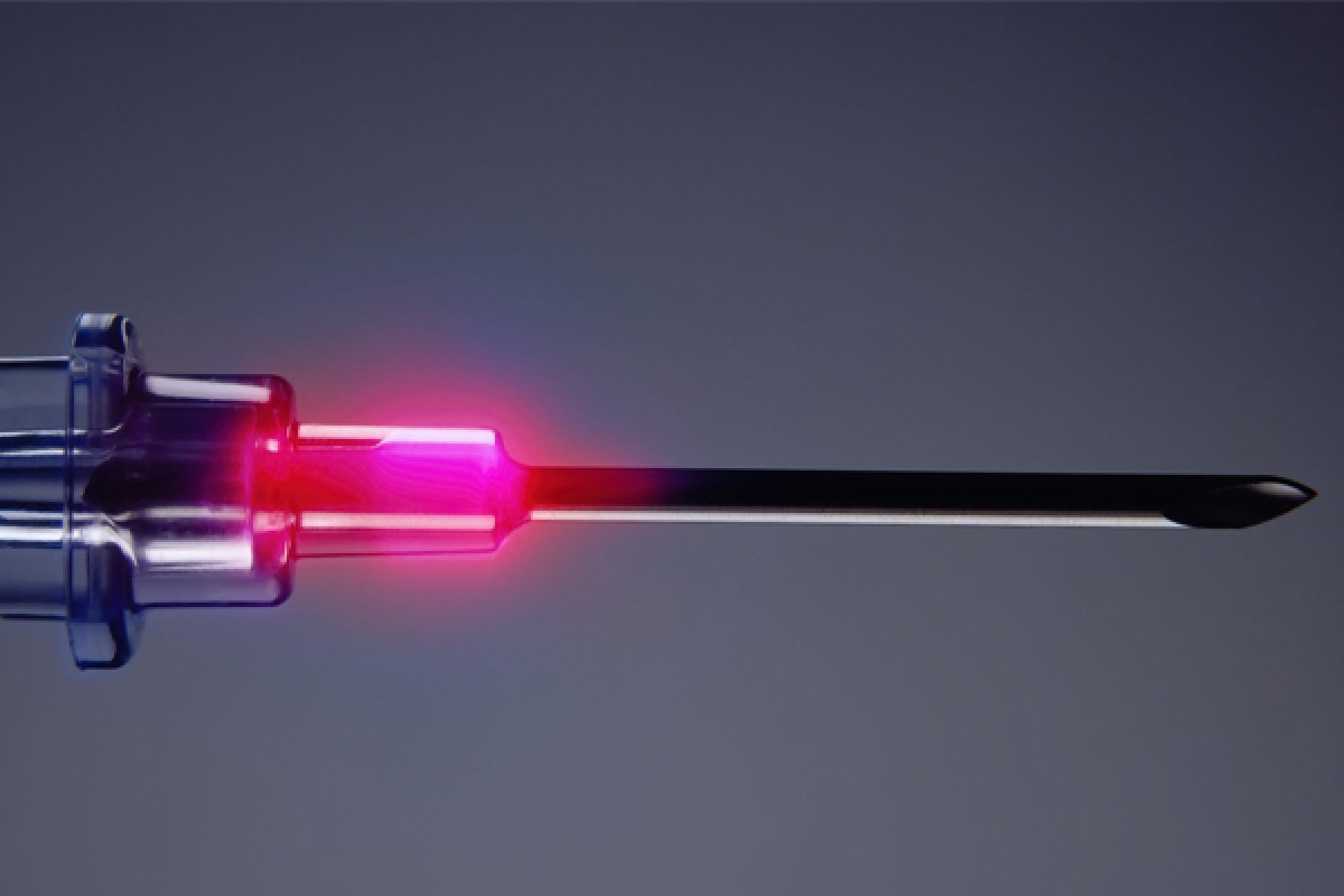

Dymax® MD® 1501-M-UR with Ultra-Red® fluorescing technology is designed for bonding lightly colored, opaque, or translucent substrates with either UV/Visible light or LED light at 405 nm. This product fluoresces bright red under low-intensity black light (365 nm). The bright red fluorescence contrasts extremely well on plastics that naturally fluoresce blue in color (like PVC), and greatly assists with visual inspection of the bond-line area.

Typical applications include needle bonding, syringe assembly, and single-use assemblies. 1501-M-UR medical device adhesive also meets ISO 10993-5 Cytotoxicity biocompatibility approvals.

Dymax® MD® Medical Device Adhesives materials have no solvents added and cure upon exposure to light. Their ability to cure in seconds enables faster processing, greater output, and lower processing costs. When cured with Dymax® light-curing spot lamps, focused beam lamps, or flood lamps, they deliver optimum speed and performance for medical device assembly. Dymax® lamps offer the ideal balance of UV and visible light for the fastest, deepest cures.
