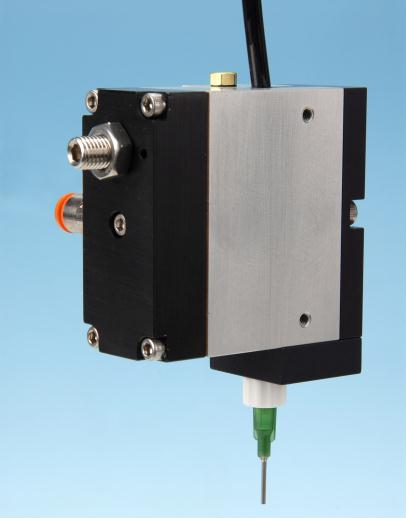

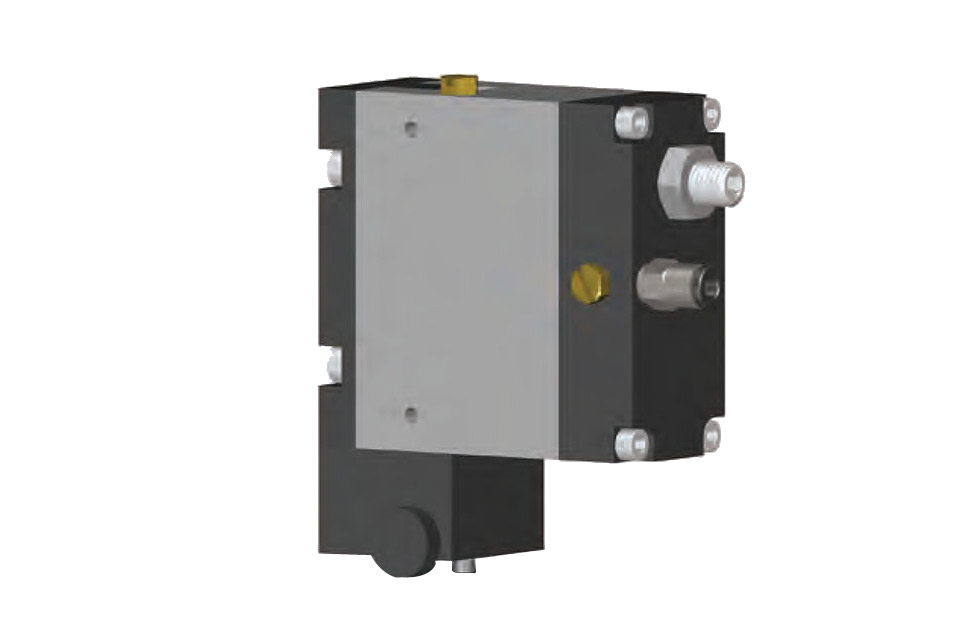

Model 826 systems are specifically designed to easily dispense thicker, stringy materials. The 826 valve is highly precise, obtaining its precision from lockable controls that facilitate the adjustment of flow rate, tube closure, and suck back. The valve also features a disposable fluid path which carries materials from the material reservoir to the dispense tip. Fluids are sealed within the fluid path, preventing contact with the valve’s inner components and ensuring a contaminate-free dispensing process. The fluid path is easy to replace and requires minimum clean-up, allowing for rapid material changeover.
Unit of Measure

Specifications

Brands

 N/A Dymax®

Valve Width

 N/A 3.75 in9.53 cm

Valve Depth

 N/A 1.125 in2.86 cm

Valve Height

 N/A 1.125 in2.86 cm

Maximum Tubing Outer Diameter (OD)

 N/A 0.25 in0.63 cm

Maximum Inlet Fluid Pressure

 N/A 100 psi6.9 bar

Maximum Operating Temperature

 N/A 150 ºF65 ºC

Operating Air Pressure

 N/A 60 to 90 psi4.1 to 6.3 bar

Valve Type

 N/A Pneumatic Pinch, Normally Closed

Type

 N/A No Reservoir

Construction Materials

 N/A Anodized Aluminum

Activation

 N/A 3-Way Solenoid Valve DVC-345 Valve Controller

Warranty

 N/A 1 Year from Purchase Date

Industry Standards

 N/A European Conformity

Parts Description

N/A T11146 : DVC-345 digital valve controller T15279 : Lab Stand - 24 in [60.96 cm] T15449 : Lab Stand - 8 in [20.32 cm] with Mounting Rods T15494 : Black Polyethylene Tubing, 0.25 in [0.63 cm] Outer Diameter T15736 : Black Male Luer Barb T16307 : Filter Regulator T16629 : High Precision Regulator

Features

N/A

  • Disposable fluid path that carries materials from the material reservoir to the dispense tip
  • Over pinch adjustment
  • Stroke adjustment for precise, micrometer control over dispensing volumes
  • Able to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)
  • Lightweight

Benefits

N/A

  • Fluids remain contaminate free during dispensing
  • Prevents air entrapment during the dispensing process
  • Allows for easy product changeover with minimal cleanup
  • Fluid never comes in contact with the valve’s inner components, reducing valve maintenance and extending the life of the valve
  • Prevents tubing damage, allowing users to secure millions of cycles from the tubing before replacement is required
  • Shot-to-shot consistency (when used with the DVC-345 Digital Valve Controller)
  • Eliminates drooling and filming over of the nozzle for a clean, drop free dispense when dispensing thin or stringy materials
  • Compatible with most standard fluid packages and delivery systems
  • Easy to handle and mount in automated or bench-top systems

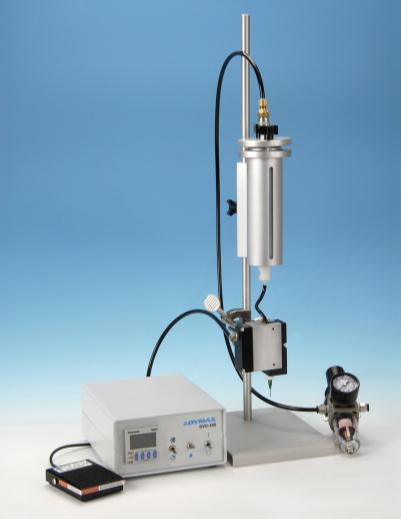

System Includes

N/A All systems include

  • Model 826 Valve With 0.25” OD PE Tubing
  • Selected Reservoir
  • Fluid Line Kits
  • Stand
  • Air Precision Regulator
  • Air Line Kits
  • Air Filter/Regulator
  • Tip Kit

Accessories

N/A Item # - T15451
Description - Valve Mounting Assembly
