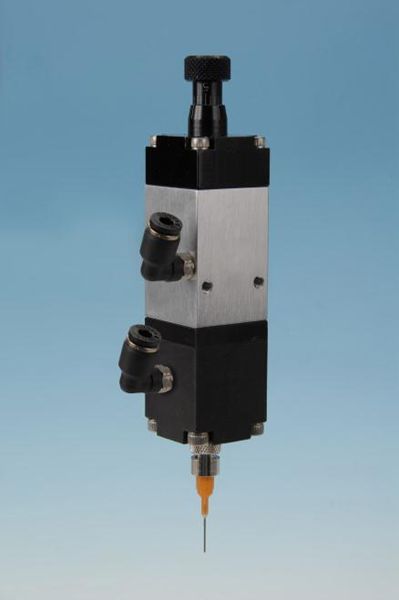

This system utilizes a pneumatic, normally closed diaphragm valve to accurately dispense low- to high-viscosity fluids. The valve’s internal diaphragm design prevents contact between the fluid and actuating components within the valve, decreasing wear on the actuating components and minimizing valve maintenance and production down-time. This feature also makes the system ideal for dispensing reactive materials like cyanoacrylates and solvent-based products. Accurate, repeatable performance can be achieved by utilizing the valve’s stroke adjustment to precisely dial-in a desired shot volume.
Unit of Measure

Specifications

Brands

 N/A Dymax®

Weight

 N/A 5 oz0.14 kg

Free Flow Orifice Diameter

 N/A 0.1 in2.54 mm

Operating Air Pressure

 N/A 60 to 80 psi4.14 to 5.51 bar

Maximum Inlet Fluid Pressure

 N/A 120 psi8.27 bar

Maximum Operating Temperature

 N/A 120 ºF49 ºC

Fluid Inlet National Pipe Thread (NPT)

 N/A 1/8

Fluid Outlet Thread

 N/A 1/4 to 28

Cycle Rate

 N/A 3000 cycles/min

Air Inlet Thread

 N/A 10-32

Fluid Inlet Thread Type

 N/A National Pipe Thread (NPT)

Valve Type

 N/A Pneumatic Diaphragm, Normally Closed

Diaphragm Material

 N/A UHMW Polyethylene (Wetted Parts)

Body Material

 N/A Acetal (Wetted Parts)

Activation

 N/A 3-Way Solenoid Valve DVC-345 Controller

Warranty

 N/A 1 Year from Purchase

Industry Standards

 N/A European Conformity

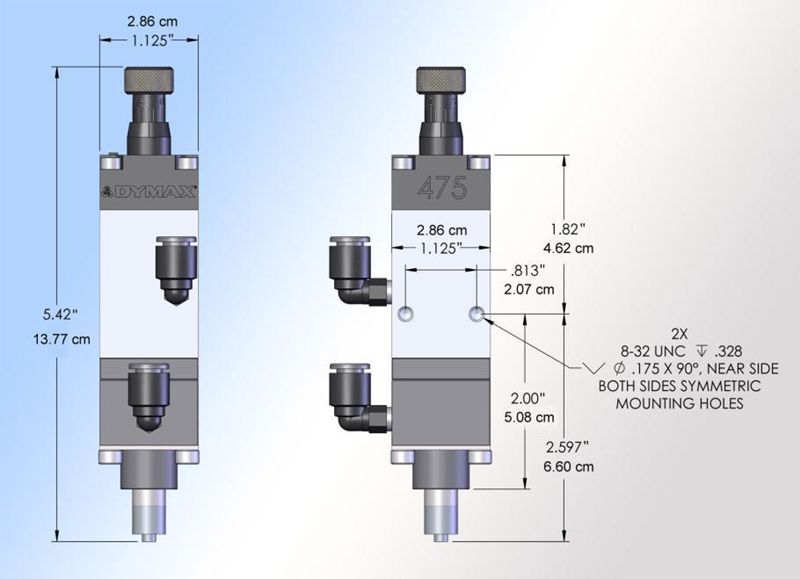

Dimensions

Width

 N/A 1.125 in2.86 cm

Depth

 N/A 1.125 in2.86 cm

Height

 N/A 5.42 in13.77 cm

Manufacturing Notes

N/A Other sizes available in free flow orifice diameter

System Includes

N/A All systems include

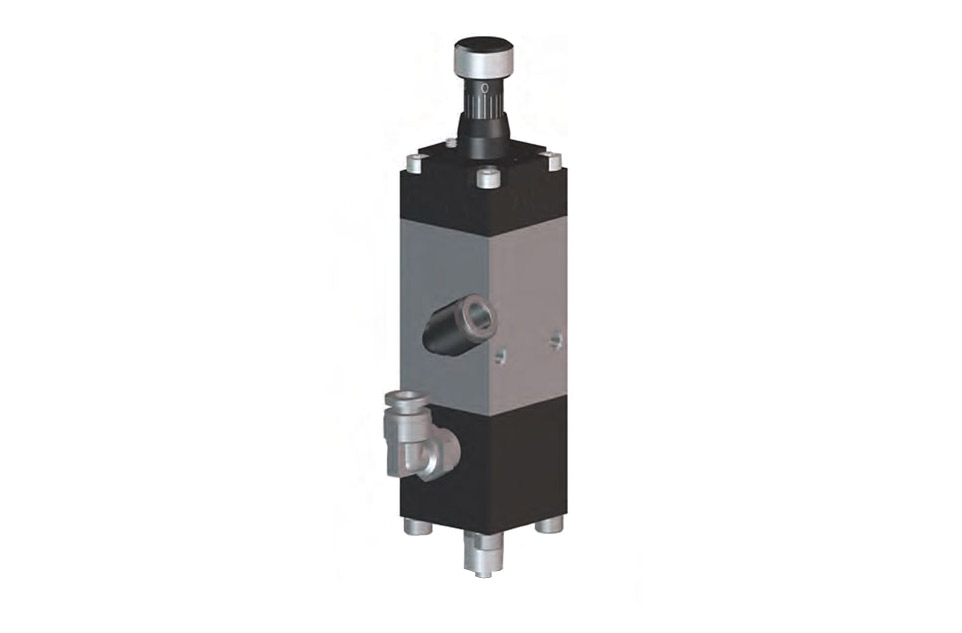

  • Model 475 Valve
  • DVC-345 Controller
  • Selected Reservoir
  • Fluid Line Kits
  • Valve Mounting Assembly
  • Lab Stand

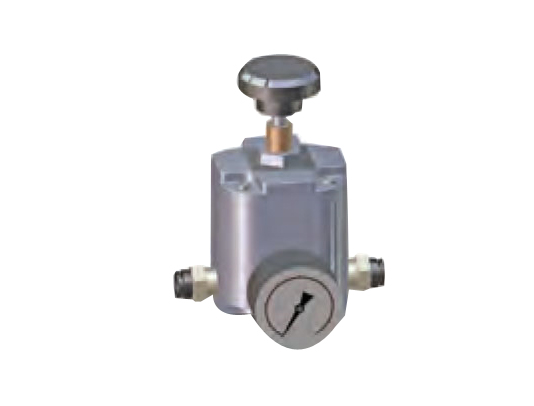

  • Air Precision Regulator
  • Air Line Kits

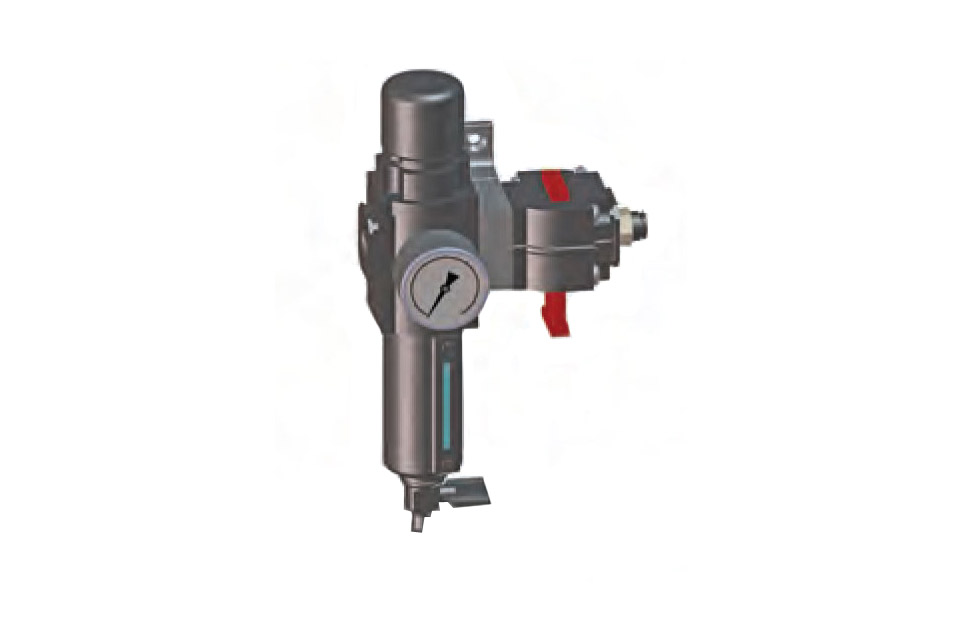

  • Air Filter/Regulator
  • Tip Kit

Parts Description

N/A T16858 : Valve Rebuild Kit

Features

N/A

  • Lightweight for easy handling and mounting
  • Extreme precision even at small sizes
  • Ideal for low- to high-viscosity fluids including reactive solvent-based materials
  • Material flow adjustment for precise control over dispense volumes

Benefits

N/A

  • Minimizes damage to the valve’s actuating components and necessary maintenance
  • Suitable for low- to high viscosity fluids including reactive and solvent based materials
  • Shot-to-shot consistency (when used with the DVC-345 controller)
  • Easy to handle and mount in automated or bench-top systems

Accessories

N/A Item # - T16857
Description - Valve Mounting Assembly
